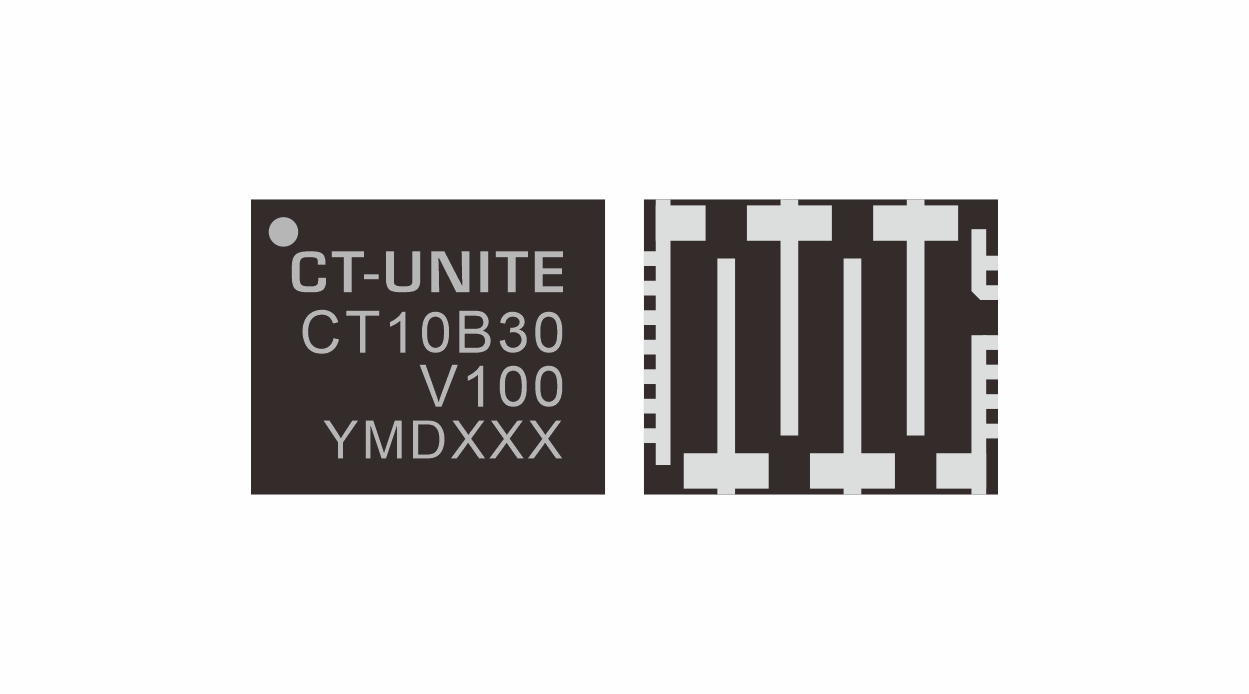

    CT10B30V100

    · Bidirectional blocking ability

    · GaN E-type HEMT technology

    · Ultra low on resistance

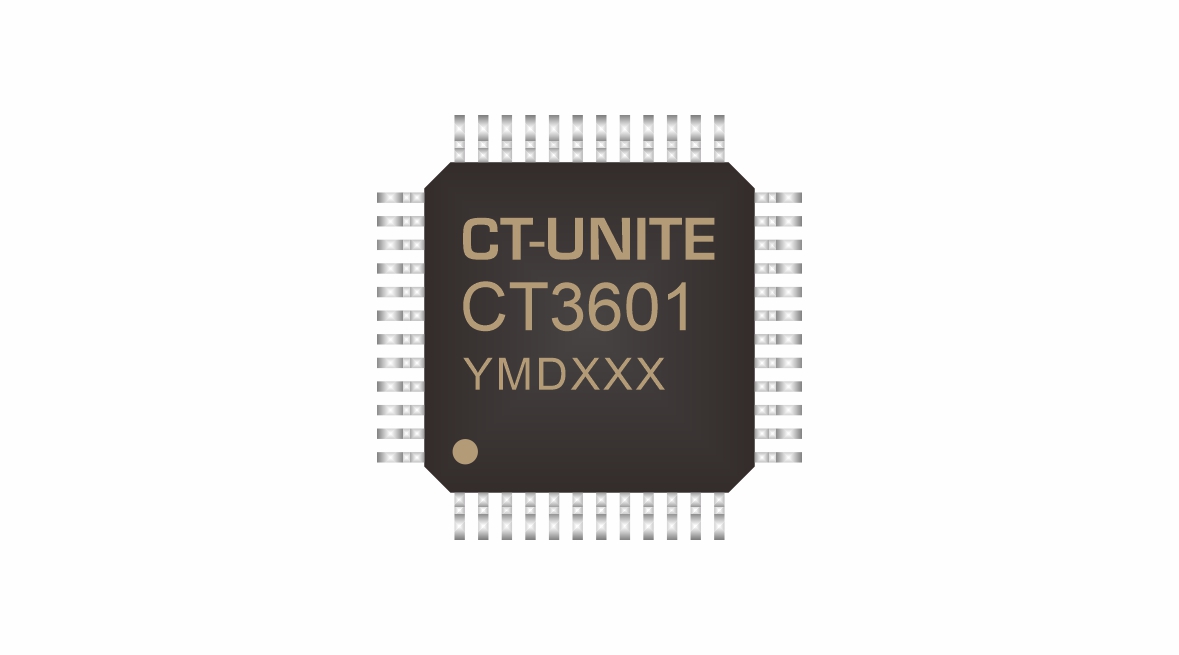

    CT3601

    The CT3601 is an analog front-end chip with high-precision lithium battery monitoring and all-round safety protection, and low-side NMOS charge/discharge tube drive control, which is suitable for a variety of battery pack applications such as 10-17 strings of ternary lithium or lithium iron phosphate.

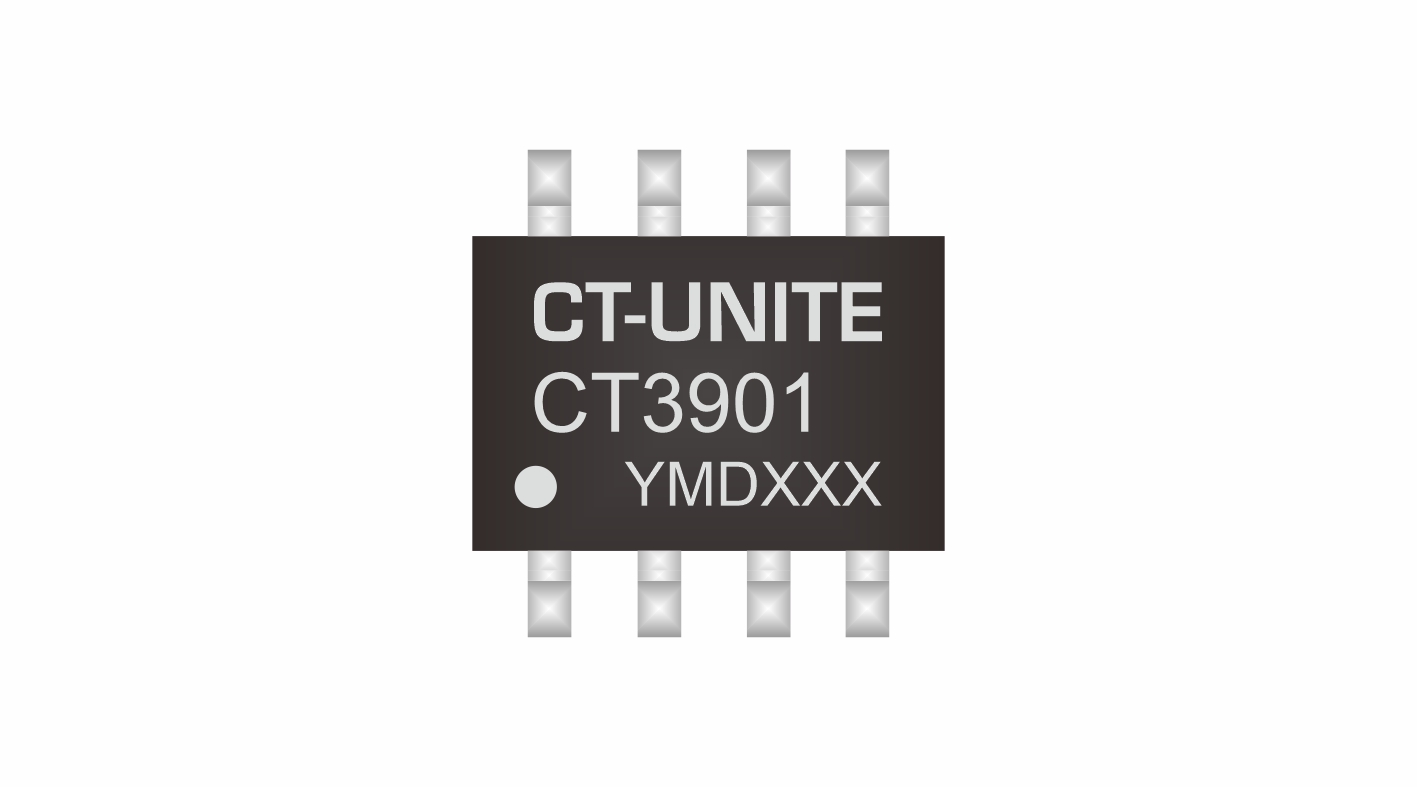

    CT3901

    The CT3901 is designed to drive 40V~150V VGaNTM, E-type bidirectional GaN HEMT with a single gate and dual drain for low-voltage side battery protection in BMS systems. With its powerful driving capabilities, the CT3901 can drive multiple VGaNTMs in parallel within 50uSec. The input of the CT3901 is compatible with AFE/MCU logic and can withstand input logic voltages up to 20V. CT3901 is a dedicated driver for CT-UNITE 40V~150V VGaNTM with a gate drive voltage of 5V. The CT3901 has fast opening and closing speeds that respond to fault conditions to protect the system.

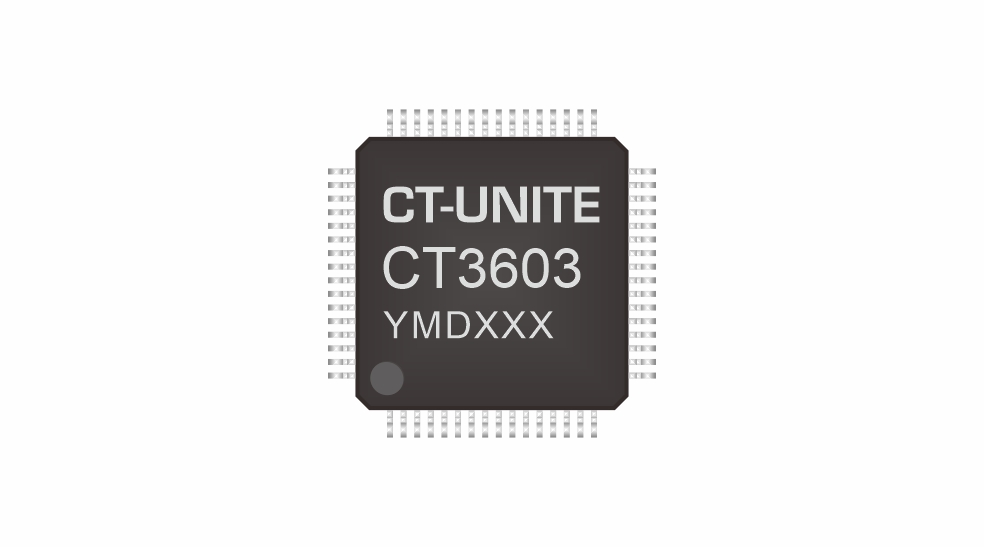

    CT3603

    CT3603 is a multi battery monitor that can measure up to 18 batteries connected in series, with a total measurement error (TME) of less than 3.0 mV. The wide battery measurement range ranges from 0V to 5.5V, making the device suitable for most battery chemistries such as NCM, LFP, sodium ion, and lead-acid batteries. All 18 units can be measured within 329 µ s, and a lower data acquisition rate can be selected to achieve higher noise reduction effect.
