Robot power chip

CT1908

100V, 150A Single-Phase Enhanced GaN Half-Bridge Chip.

 1.Description

The CT-1908 is a compact 100V, 150A half-bridge SolidGaN solution housed in a 9 mm × 9 mm LGA package. The package includes six high-performance enhancement-mode GaN FETs, drivers, gate resistors, and driver power capacitors, delivering the industry's most compact and efficient GaN power solution.

The CT-1908 provides two logic inputs to control the high-side and low-side GaN-FETs, ensuring maximum flexibility. The split driver outputs allow independent adjustment of turn-on and turn-off strengths, optimizing EMI and efficiency.

The CT-1908 features comprehensive fault protection, including active bootstrap (BST) voltage control to prevent overcharging and ensure stable gate drive voltage, independent under-voltage and over-voltage protection for VCC and BST, as well as over-temperature protection.

With fast propagation delay, excellent delay matching, superior dv/dt immunity, and ultra-low parasitic inductance loop within the package, the CT-1908 enables designers to significantly enhance power density and efficiency..

 2.Features

★ 1.2mΩ Half-Bridge GaN FET with Gate Driver

★ 80V Continuous, 100V Transient Rated Voltage

★ Switchable to 5MHz

★ Independent high-side and low-side PWM inputs

★ Powerful and Intelligent Internal Bootstrap Switch

★ Fast propagation delay (typical 14ns)

★ Excellent delay matching (typical value of 1ns)

★ Built-in UVLO, OVLO, and OTP protection

★ 105μA low VCC static current

★ Integrated VCC/BST Capacitor

★ Withstanding dv/dt immunity up to 50V/ns

★ Adjustable opening speed

★ Optimized for simple and low EMI PCB layouts

 3.Applications

★ Motor Drive Applications

 4.Pin information

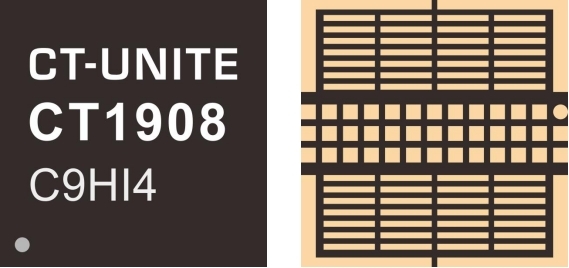

99-Pin LGA (9mm×9mm) package

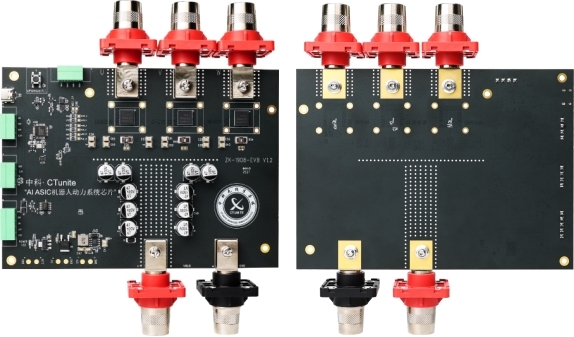

 5.Product Application
