BMS single-phase enhanced GaN half bridge chip

CT3901

100V low-voltage bidirectional VGaN driver

 Product Introduction

CT3901 is designed to drive a 40V~150V VGaNTM, E-type bidirectional GaN HEMT with a single gate and dual drain, used for low-voltage side battery protection in BMS systems. With its powerful driving capability, CT3901 can drive multiple VGaNTMs in parallel within 50uSec. The input of CT3901 is compatible with AFE/MCU logic and can withstand input logic voltages up to 20V. CT3901 is a dedicated driver for CT-UNITE 40V~150V VGaNTM, with a gate drive voltage of 5V. CT3901 has fast turn-on and turn off speeds and can respond to fault conditions to protect the system.

 Product Features

· Compatible with AFE or MCU control logic

· 12uA low static current

· VGaNTM dedicated 5V gate drive voltage

· Quick opening/closing speed

· Capable of driving multiple VGaNs in parallel

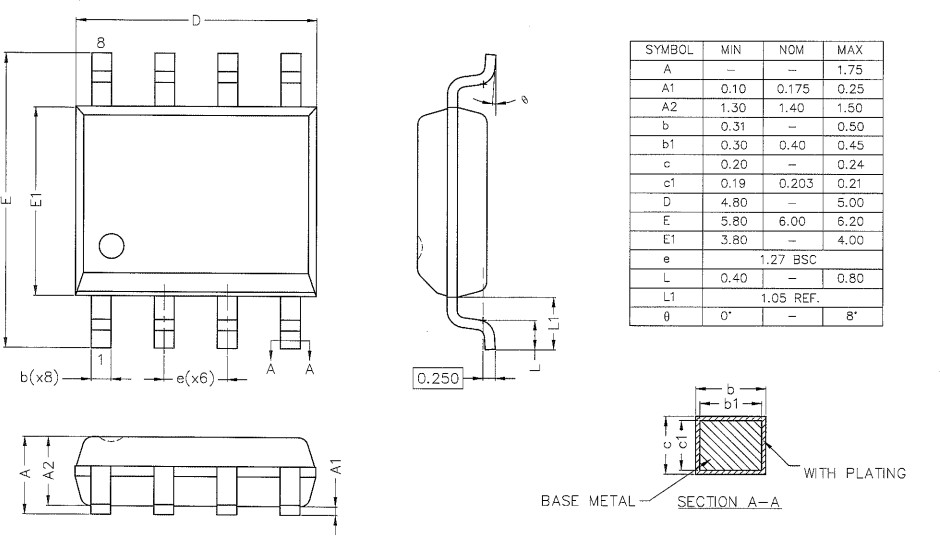

· SOP 8-lead packaging

 application field

·储能系统（ESS）

·电动自行车、电动滑板车

·备用电池和UPS

·电力和园艺工具

·轻型电动汽车（LEV）

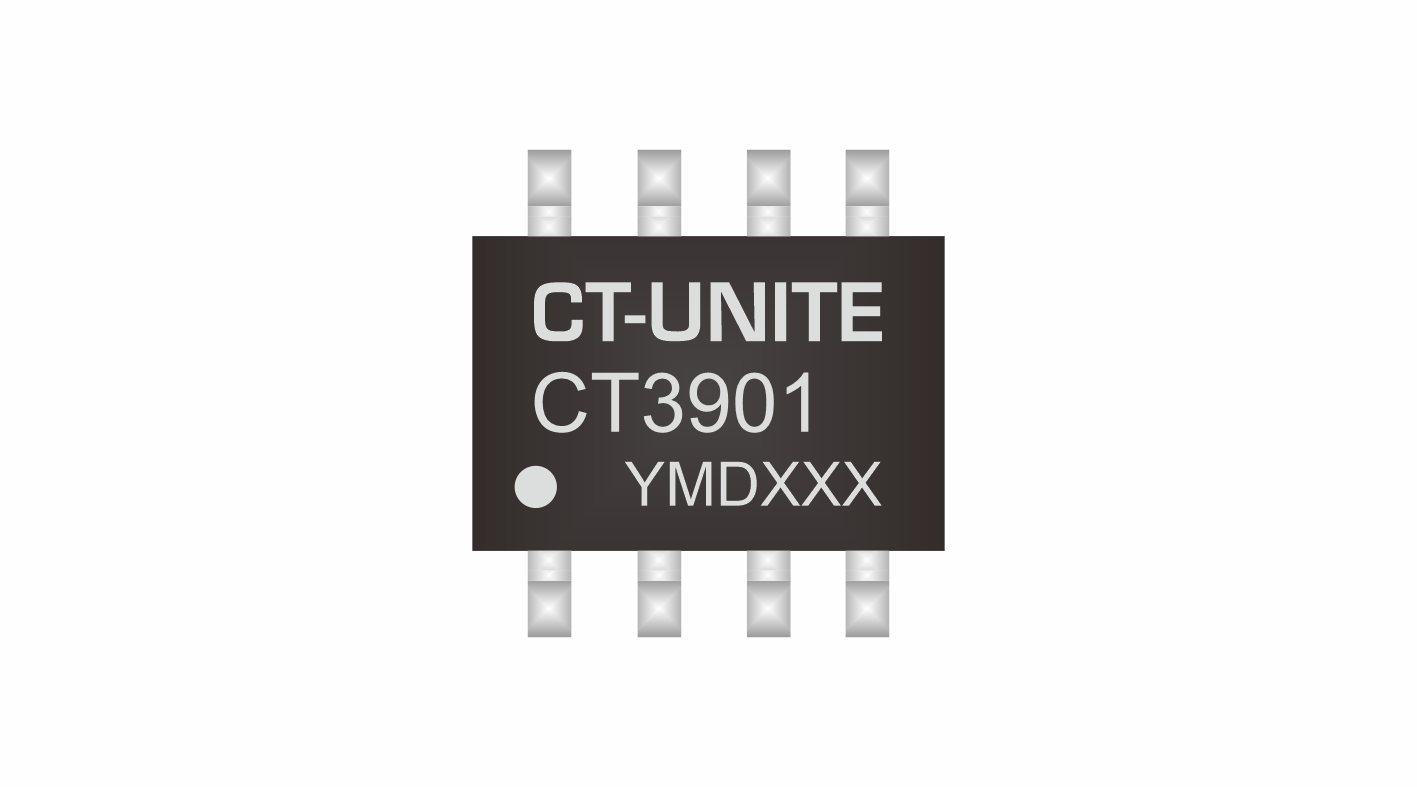

 Product Image
